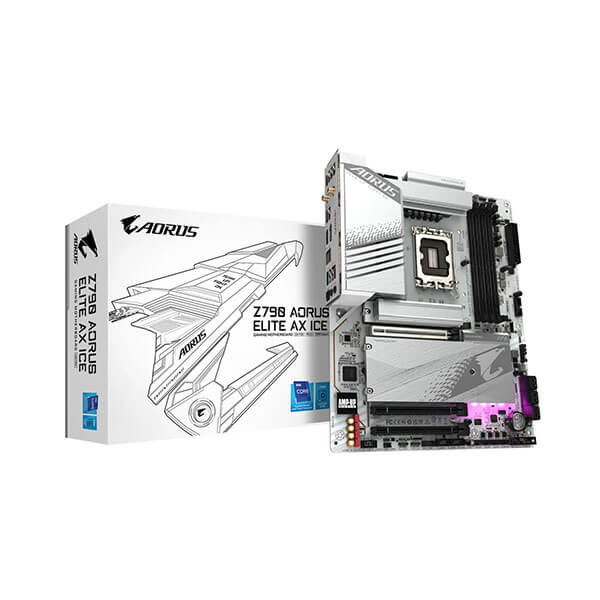

Gigabyte Z790 Aorus Elite Ax Ice Ddr5 Motherboard (Z790-AORUS-ELITE-AX-ICE)
Model – Z790 AORUS ELITE AX ICECPU – LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU(Please refer CPU Support List for more information.)Chipset – Intel® Z790 Express ChipsetMemory – Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to Memory Support List for more information.)Onboard Graphics – Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096×2304@60* Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)Audio – Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF OutLAN – Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless Communication module – Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate* Actual data rate may vary depending on environment and equipment.Expansion Slots – CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)Storage Interface – CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)6 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices* Refer to 2-8 Internal Connectors, for the installation notices for the M.2 and SATA connectors.USB – Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)Internal I/O Connectors – 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumperBack Panel Connectors – 1 x USB Type-C port, with USB 3.2 Gen 2×2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacksI/O Controller – iTE® I/O Controller ChipH/W Monitoring – Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS – 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features – Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupBundled Software – Norton® Internet Security (OEM version)LAN bandwidth management softwareOperating System – Support for Windows 11 64-bitSupport for Windows 10 64-bitForm Factor – ATX Form Factor; 30.5cm x 24.4cmWarranty – 3 YearsNote – *** Features, Price, Specifications are subject to change without notice.
Original price was: ₹53,500.00.₹30,790.00Current price is: ₹30,790.00.
Related Products

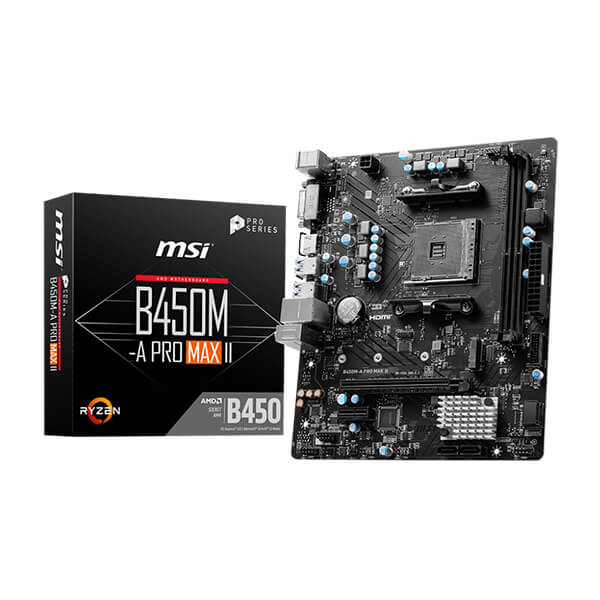

Model – B450M-A PRO MAX IIChipset – AMD B450CPU SUPPORT – Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon with Radeon Vega Graphics desktop processorsSocket AM4Memory – 2x DDR4, Maximum Memory Capacity 64GBMemory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)Supports Dual-Channel modeSupports non-ECC, UDIMM memorySupports ECC UDIMM memory (non-ECC mode)Supports un-buffered memoryOnboard Graphics – 1x HDMISupport HDMITM 1.4, maximum resolution of 4K 24Hz*1x DVISupport DVI-D, maximum resolution of 1920×1200 60HzEXPANSION SLOT – 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)Storage – 1x M.2M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6GRAID – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesUSB – 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)LAN – Realtek® 8125 2.5Gbps LAN controllerAudio – Realtek® ALC897 Codec7.1-Channel High Definition AudioInternal I/O – 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A portsBACK PANEL PORTS – Keyboard/MouseDVI-DHDMIUSB 3.2 Gen 1 5Gbps (Type-A)2.5G LANAudio connectorsUSB 2.0OPERATING SYSTEM – Support for Windows® 11 64-bit, Windows® 10 64-bitPCB Dimension (W × L) – mATX200mmx236mmWarranty – 3 YearsNote – *** Features, Price, Specifications are subject to change without notice.
