Chipset – INTEL B760CPU – Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700Memory – 2x DDR4, Maximum Memory Capacity 64GBMemory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)Max. overclocking frequency:• 1DPC 1R Max speed up to 4800+ MHz• 1DPC 2R Max speed up to 4600+ MHzSupports Dual-Channel modeSupports Dnon-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)Audio – Realtek® ALC897 Codec7.1-Channel High Definition AudioStorage – 2x M.2 (Qty)M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6G (Qty)* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.LAN – Realtek® RTL8125B 2.5Gbps LANOnboard Graphics – 1x HDMI™Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz*1x D-SubSupport VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot – 1x PCI-E x16 slot (Qty)1x PCI-E x1 slot (Qty)PCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)Raid – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB – 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)Wireless LAN & Bluetooth – Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.Internal I/O – 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A portsLED Feature – 4x EZ Debug LEDBack Panel Ports – HDMI™VGADisplayPortKeyboard / Mouse2.5G LANWi-Fi / BluetoothAudio ConnectorsUSB 2.0USB 3.2 Gen 1 5Gbps (Type-A)Operating System – Support for Windows® 11 64-bit, Windows® 10 64-bitPCB Info – mATX220mmx243.84mmWarranty – 3 YearsNote** – **Prices, Specifications & Features are subject to change without notice

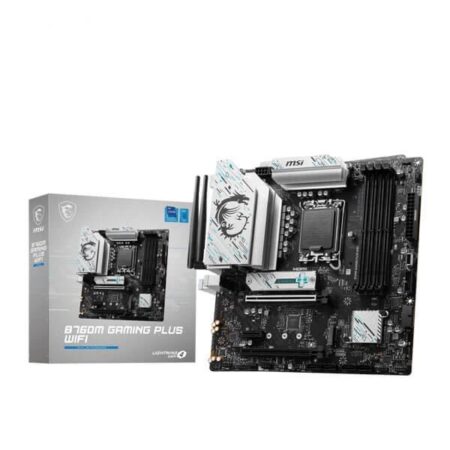

Model Number – B760M GAMING PLUS WIFIChipset – INTEL B760CPU – Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700Memory – 4x DDR5, Maximum Memory Capacity 192GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memoryOnboard Graphics – 2x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz2x DisplayPortSupport DP 1.4, maximum resolution of 4K 60HzSlot – 2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)Storage – 2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices4x SATA 6GRAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB – 2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen1 Type C (Front)2x USB 3.2 Gen2 Type A (Rear)LAN – Realtek® RTL8125BG 2.5G LANWIRELESS LAN & BLUETOOTH – Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMAAudio – Realtek® ALC897 Codec7.1-Channel High Definition AudioInternal IO – 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen1 Type C portsLED FEATURE – 4x EZ Debug LEDBACK PANEL PORTS – Keyboard / MouseDisplayPortUSB 3.2 Gen 1 5Gbps (Type-A)2.5G LANWi-Fi / BluetoothUSB 2.0HDMI™USB 3.2 Gen 2 10Gbps (Type-A)Audio ConnectorsOPERATING SYSTEM – Support for Windows® 11 64-bit, Windows® 10 64-bitPCB Info – mATX243.84mmx243.84mmWarranty – 3 YearsNote – *** Features, Price, Specifications are subject to change without notice.

Chipset – INTEL Z790CPU – Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700Memory – 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memoryOnboard Graphics – 1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*Slot – 2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)Storage – 5x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices6x SATA 6GRaid – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devicesUSB – 4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)6x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Rear)1x USB 3.2 Gen2x2 Type C (Rear)1x USB 3.2 Gen2x2 Type C (Front)LAN – Intel® 2.5Gbps LANWireless & Bluetooth – Wi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.4**, MLO, 4KQAMAudio – Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-Bit/384 kHz playback on front panelInternal I/O – 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan5x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen 2×2 Type C ports1x ARGB+FAN Header (JAF_1)1x USB4 card connector (JTBT_U4_1, supports RTD3)LED Feature – 4x EZ Debug LED1x 2-Digit Debug Code LED1x EZ LED Control switchBack Panel Ports – Flash BIOS / Clear CMOSUSB 3.2 Gen 1 5 Gbps (Type-A)USB 3.2 Gen 2 10Gbps (Type-A)2.5G LANWi-Fi / BluetoothAudio ConnectorsSmart ButtonHDMI™USB 3.2 Gen 2 10Gbps (Type-C)USB 3.2 Gen 2×2 20Gbps (Type-C)Optical S/PDIF OutOperating System – Support for Windows® 11 64-bit, Windows® 10 64-bitPCB Info – ATX243.84mmx304.8mmWarranty – 3 YearsNote** – **Prices, Specifications & Features are subject to change without notice

Model Name – PRO B650M-BChipset – AMD B650CPU – Supports AMD Ryzen 8000/ 7000 Series Desktop ProcessorsSocket AM5Memory – 2x DDR5, Maximum Memory Capacity 96GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports AMD EXPOOnboard Graphics – 1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60HzSlot – 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)Storage – 1x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GRAID – Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesUSB – 2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)LAN – Realtek® RTL8125BG 2.5G LANAudio – Realtek® ALC897 Codec7.1-Channel High Definition AudioInternal IO – 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A portsLED FEATURE – 4x EZ Debug LEDBACK PANEL PORTS – HDMI™VGAKeyboard/MouseUSB 3.2 Gen 1 5Gbps (Type-A)LAN portAudio connectorsUSB 2.0OPERATING SYSTEM – Support for Windows® 11 64-bit, Windows® 10 64-bitPCB Info – mATX215mmx243.84mmWarranty – 3 YearsNote – *** Features, Price, Specifications are subject to change without notice.

Socket – 1700Chipset – Intel® H610 ChipsetMemory Channel – DualDIMM Slots – 2Max Memory (GB) – 64PCI-E x 16 – 1PCI-E x 1 – 1SATA III – 4M.2 Slot – 1TPM (Header) – 1Wifi Bluetooth – Intel® Wi-Fi 5, Bluetooth 4.2Usb 3.2 Ports (Front) – 2(Gen 1, Type A)Usb 3.2 Ports (Rear) – 2(Gen 1, Type A)Usb 2.0 Ports (Front) – 2Usb 2.0 Ports (Rear) – 4Audio Ports (Rear) – Realtek® ALC897 CodecDisplay Port – 1VGA – 1HDMI – 1Direct X – 12Operating System – Support for Windows® 11 64-bit, Windows® 10 64-bitForm Factor – M-ATXWarranty – 3 YearsNote** – **Prices, Specifications & Features are subject to change without notice

Model – PRO H610M-S DDR4Chipset – INTEL H610CPU – Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron ProcessorsLGA 1700Memory – 2x DDR4, Maximum Memory Capacity 64GBMemory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports Dual-Channel modeSupports non-ECC, un-buffered memoryOnboard Graphics – 1x HDMISupport HDMI 1.4 with HDR, maximum resolution of 4K 30Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installedSlot – 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)Storage – 1x M.2M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices2x SATA 6GUSB – 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)2x USB 3.2 Gen1 Type A (Front)LAN – Realtek RTL8111H Gigabit LANAudio – Realtek ALC897 Codec7.1-Channel High Definition AudioInternal IO – 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 3.2 Gen1 Type A portsLED FEATURE – 4x EZ Debug LEDBACK PANEL PORTS – HDMIUSB 3.2 Gen 1 5Gbps (Type-A)USB 2.0LAN portAudio ConnectorsUSB 2.0OPERATING SYSTEM – Support for Windows 11 64-bit, Windows 10 64-bitPCB Info – mATX200mmx236.16mmWarranty – 3 YearsNote – *** Image use for reference only*** Features, Price, Specifications are subject to change without notice.

Chipset – INTEL Z790CPU – Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA1700Memory – 4x DDR5 UDIMM, Maximum Memory Capacity 192GBMemory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7200+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory ProfileOnboard Graphics – 1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot – 3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)Storage – 4x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices6x SATA 6GRaid – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB – 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)LAN – Intel® 2.5Gbps LANWireless & Bluetooth – Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAMAudio – Realtek® ALC897 Codec7.1-Channel High Performance AudioSupports S/PDIF outputInternal IO – 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports1x USB4 card connector (JTBT_U4_1, supports RTD3)LED Feature – 4x EZ Debug LEDBack Panel Ports – Mouse / KeyboardDisplayPort 1.4USB 2.02.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsFlash Bios ButtonUSB 2.0HDMI™ 2.1 PortUSB 3.2 Gen 1 5Gbps Type-AUSB 3.2 Gen 2×2 20Gbps Type-CUSB 3.2 Gen 2 10Gbps Type-AOperating System – Support for Windows® 11 64-bit, Windows® 10 64-bitPCB Info – ATX243.84mmx304.8mmWarranty – 3 YearsNote** – **Prices, Specifications & Features are subject to change without notice

Model – Z790 PROJECT ZEROChipset – INTEL Z790CPU – Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA1700Memory – 4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:1DPC 1R Max speed up to 7200+ MHz1DPC 2R Max speed up to 6600+ MHz2DPC 1R Max speed up to 6400+ MHz2DPC 2R Max speed up to 5600+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel® Extreme Memory ProfileOnboard Graphics – 1x HDMI™Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.Slot – 3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)Storage – 4x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices6x SATA 6GRAID – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesUSB – 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 3.2 Gen1 Type A (Rear)4x USB 3.2 Gen1 Type A (Front)1x USB 3.2 Gen2 Type A (Rear)1x USB 3.2 Gen2 Type C (Front)1x USB 3.2 Gen2x2 Type C (Rear)LAN – Intel® 2.5Gbps LANWIRELESS LAN & BLUETOOTH – Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.Audio – Realtek® ALC897 Codec7.1-Channel High Performance AudioSupports S/PDIF outputInternal IO – 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x TBT connector (JTBT, supports RTD3)2x Addressable V2 RGB LED connector (JARGB_V2)2x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 3.2 Gen1 Type A ports1x USB 3.2 Gen2 Type C ports1x USB4 card connector (JTBT_U4_1, supports RTD3)LED FEATURE – 4x EZ Debug LEDBACK PANEL PORTS – Mouse / KeyboardDisplayPort 1.4USB 2.02.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsFlash Bios ButtonUSB 2.0HDMI™ 2.1 PortUSB 3.2 Gen 1 5Gbps Type-AUSB 3.2 Gen 2×2 20Gbps Type-CUSB 3.2 Gen 2 10Gbps Type-AOPERATING SYSTEM – Support for Windows® 11 64-bit, Windows® 10 64-bitPCB Info – ATX243.84mmx304.8mmWarranty – 3 YearsNote – *** Image use for reference only*** Features, Price, Specifications are subject to change without notice.
