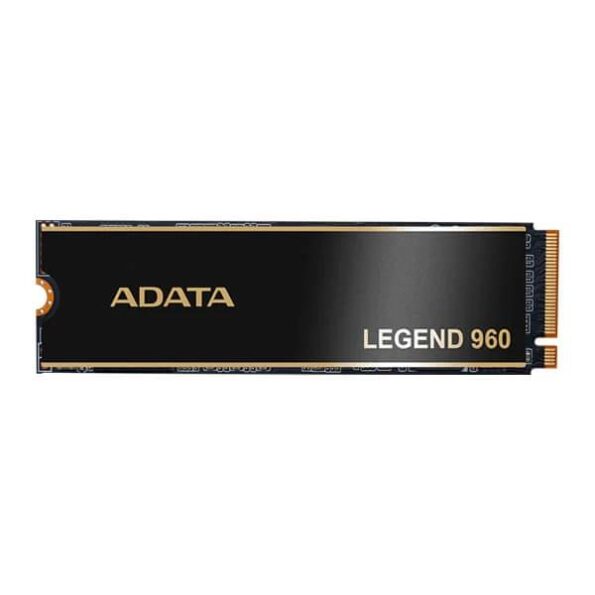

Adata Legend 960 1Tb M.2 Nvme Gen4 Internal Ssd (ALEG-960-1TCS)
Model Number – ALEG-960-1TCSCapacity – 1TBForm factor – M.2 2280NAND Flash – 3D NANDController – SMI SM2264Dimensions (L x W x H) – 80 x 22 x 4.68mm / 3.15 x 0.87 x 0.18inch (with heat sink)80 x 22 x 3.38mm / 3.15 x 0.87 x 0.13inch (without heat sink)Weight – 11g / 0.39oz (with heat sink)8g / 0.28oz (without heat sink)Interface – PCIe Gen4 x4Sequential Read (Max) – Up to 7,400MB/sSequential Write (Max) – Up to 6,000MB/s4KB Random Read IOPS(Max) – Up to 750K4KB Random Write IOPS(Max) – Up to 630KOperating temperature – 0°C 70°CStorage temperature – -40°C-85°CShock resistance – 1500G/0.5msMTBF – 2,000,000 hoursTerabytes Written (TBW) – 3,120TBWarranty – 5 YearsNote – *** Features, Price, Specifications are subject to change without notice.
Original price was: ₹15,999.00.₹7,120.00Current price is: ₹7,120.00.
