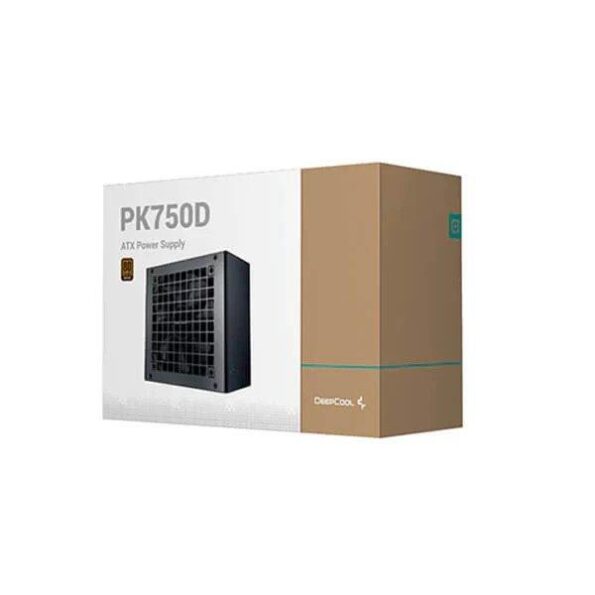

Deepcool Pk750D 80 Plus Bronze Power Supply (R-PK750D-FA0B-UK)
Type – ATX12V V2.4Product Dimensions – 150×140×86mm (W x L x H)80PLUS Certifications – BronzeFan Size – 120mmFan Bearing – Hypro BearingTopology – Active PFC+DC to DCCapacitors – Taiwan capacitorPower Good Signal – 100-150msHold Up Time – ?16ms(80% Load)Efficiency – ?85% Under Typical Load(50% Loading)Protection – SCP,OPP,OTP,OVP,OCP,UVPOperation Temperature – 0 40 °CRegulatory – CB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BISErp Regulation – ErP 2013MTBF – 100,000 HoursWarranty – 5 YearsNote – *** Features, Price, Specifications are subject to change without notice.
Original price was: ₹9,999.00.₹4,984.00Current price is: ₹4,984.00.
