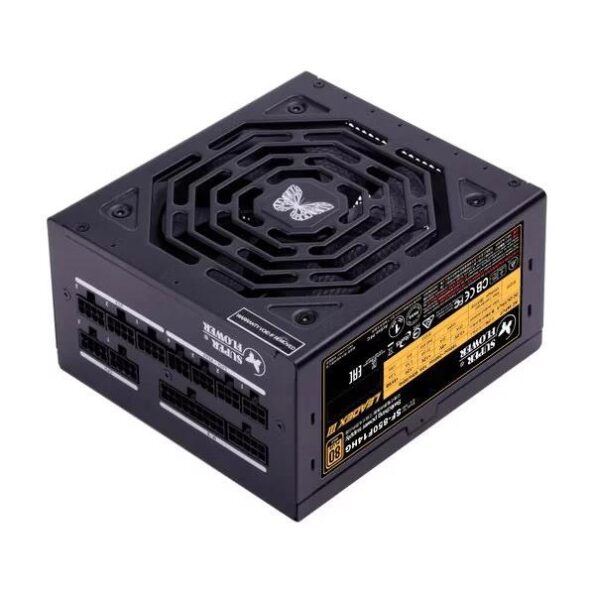

Super Flower Leadex III 850 Watt 80 Plus Gold Power Supply (SF-850F14HG)
Model – LEADEX III GOLD 850WPart no. – SF-850F14HGWattage – 850W80+ Efficiency – 20%: 87%; 50%: 90%; 100%: 87% (115V Internal Gold)Intel Power Design Guide – EPS Ver. 2.92 & ATX 2.52AC Input | Frequency – 100V-240V|60/50Hz Full Range APFCFan Size – 130mm F.D.B FanDimension – 160mm(L) x 150mm(W) x 86mm(H)Protection – OVP / OCP / Dual OPP / SCP / UVP / OTP / NLO / SIPSafety – cTUVus / TUV / CB / CE / FCC / RCM / BSMI / RoHS / KCC / CCCTemperature – Passed 50°C HOT Testingcable Spec – 1 x 20+4pin (600mm)2 x 8 (4+4Pin)CPU (700mm)3 x SLI(2 x PCI 6+2Pin (550mm+150mm)3 x 3SATA (550+120+120mm)1 x 4Molex (550+100+100+100mm)1xPCIe 16 Pin (700mm)Warranty – 10 YearsNote – *** Images are for Representation purposes only*** Features, Price, Specifications are subject to change without notice.
Original price was: ₹20,600.00.₹8,740.00Current price is: ₹8,740.00.
Related Products
Model – VS700LType – ATX 2.3Modular – Non-ModularInput Voltage – 200V-240VInput Current – 5AInput Frequency Range – 50Hz-60HzProtection Type – OCP-OPPOperation Temperature – 40°CFan – 120MMIn the Box – Power Supply x1Power Cable x1Mounting Screws x4User Manual x1Connector – Motherboard (20+4 Pins) x 1pcsCPU (4 Pins) x 2pcsPCI-E (6+2 Pins) x 1pcsSATA x 4pcsMolex x 2pcsWarranty – 2 YearsNote – *** Features, Price, Specifications are subject to change without notice.
Type – ATX12V V3.1Product Dimensions – 150×140×86mm (W x L x H)Efficiency Certification – 80 Plus GoldFan Size – 120mmFan Bearing – FDB (Fluid Dynamic Bearing)Topology – Active PFC + Full Bridge SRC LLC + DC to DCCapacitors – Japanese Bulk CapacitorPower Good Signal – 100-150msHold Up Time – ?16ms(80% Load)Efficiency – ?90% Under Typical Load(50% Loading)Protection – OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLOOperation Temperature – 0 40?Regulatory – CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RHERP Registration – ERP 2014Environment Protection – WEEE/?? RoHS/Triman/P65MTBF – 100,000 HoursPart Number – R-PN750M-FC0B-INWarranty – 10 YearsNote** – **Prices, Specifications & Features are subject to change without notice
Specification – Model – RX550AC Input – Input Voltage: 200-240VFrequency: 50-60HzInput Current: 5APFC – Active PFCOutput Capacity – 550WattOperating Temperature – 0-45CFan Type – 120mm Silent FanEfficiency – Up to 80% TypicallyProtection – OCP/UVP/OPP/OTP/SCPConnector – Motherboard 20+4 Pin: x1CPU 4+4 Pin: x2PCI-E 6+2 Pin: x1SATA: x4Molex: x2Warranty – 3 YearNote* – Price, feature and specifications are subject to change without notice
Model – PL750DP/N – R-PL750D-FC0B-IN-V2Power Connector – Main Power Connector (20+4)Pin x 1 (x1)CPU Pin – CPU(4+4)Pin x 1 (x2)PCI-E Pin – PCI-E(6+2)Pin x 1 (x1)PCI-E Pin – PCI-E(6+2)Pin x 2 (x1)Cable – 12VHPWR(16Pin) x 1 (x1)Sata Pin – SATA x 3 + 4Pin Peripheral x 1 (x2)Type – ATX12V V3.0Product Dimensions – 150×140×86mm (W x L x H)Efficiency certification – 80Plus BronzeFan Size – 120mmFan Bearing – HYB(Hydro Bearing)Topology – Active PFC+DC to DCCapacitors – Chinese Electrolytic CapacitorsPower Good Signal – 100-150msHold Up Time – ?16msEfficiency – ?85% Under Typical Load(50% Loading)Protection – OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLOOperation Temperature – 0 40âRegulatory – CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RHMTBF – 100,000 HoursWarranty – 5 YearsNote – *** Features, Price, Specifications are subject to change without notice.
Model – C750 BronzeModel Number – PA-7B2BBOutput Connector(s) – 24-pin ATX Power – 14+4-pin CPU power – 26+2-pin PCIe power – 2SATA Power – 4Peripherals – 4Energy Efficiency – Rating – 80 Plus Bronze10% loading – 86.2% @115Vac20% loading – 88.97% @115Vac50% loading – 88.7% @115Vac100% loading – 83.2% @115VacCable Specs – 24-pin ATX power – 600mm, Nylon sleeving4+4-pin CPU power – 700mm, Nylon sleeving6+2-pin PCIe power – 650 + 150mm, Nylon sleevingSATA power – 500 + 150 mmPeripherals – 500 + 150 mmFan Specs – Dimensions – 120 x 120 x 25 (mm)Speed – 2400 ±10% RPMAirflow – 64.4 CFM (Tpy.)Noise – 39.92 dBA maxBearing – FDB (Fluid Dynamic Bearing)AC Input Rating – 100 240Vac – 10A-5A 50Hz-60HzDC Output Rating – +3.3V – 20A (120W)+5V – 20A (120W)+12V – 62.5A (750W)-12V – 0.3A (3.6W)5Vsb – 2.5A (12.5W)Total – 750WOperation – PF Correction – [email protected]MTBF – 100,000 hoursOperation Temperature – 0 to 40°CGeneral – Dimensions (W x L x H) – 150 x 140 x 86mmMaterial(s) – Steel, PCB and PlasticCompliance Standard – ATX12V v2.53 / EPS12V v2.92Warranty – 3 YearsNote – *** Features, Price, Specifications are subject to change without notice.
Type – ATX12V V3.1Product Dimensions – 150×140×86mm (W x L x H)Efficiency Certification – 80 Plus GoldFan Size – 120mmFan Bearing – FDB (Fluid Dynamic Bearing)Topology – Active PFC + Full Bridge SRC LLC + DC to DCCapacitors – Japanese Bulk CapacitorPower Good Signal – 100-150msHold Up Time – ?16ms(80% Load)Efficiency – ?90% Under Typical Load(50% Loading)Protection – OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLOOperation Temperature – 0 40?Regulatory – CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RHERP Registration – ERP 2014Environment Protection – WEEE/?? RoHS/Triman/P65MTBF – 100,000 HoursPart Number – R-PN850M-FC0B-INWarranty – 10 YearsNote** – **Prices, Specifications & Features are subject to change without notice
Model – PL550DP/N – R-PL550D-FC0B-IN-V2Power Connector – Main Power Connector (20+4)Pin x 1 (x1)CPU Pin – CPU(4+4)Pin x 2 (x1)PCI-E Pin – PCI-E(6+2)Pin x 1 (x1)PCI-E Pin – PCI-E(6+2)Pin x 2 (x1)Cable – 12VHPWR(16Pin) x 1 (x1)Sata Pin – SATA x 3 + 4Pin Peripheral x 1 (x2)Type – ATX12V V3.0Product Dimensions – 150×140×86mm (W x L x H)Efficiency certification – 80Plus BronzeFan Size – 120mmFan Bearing – HYB(Hydro Bearing)Topology – Active PFC+DC to DCCapacitors – Chinese Electrolytic CapacitorsPower Good Signal – 100-150msHold Up Time – ?16msEfficiency – ?85% Under Typical Load(50% Loading)Protection – OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLOOperation Temperature – 0 40âRegulatory – CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RHMTBF – 100,000 HoursWarranty – 5 YearsNote – *** Features, Price, Specifications are subject to change without notice.
Model – Brand – AntecModel – NE1000GSpec – Type – ATX12V V3.0Maximum Power – 1000WFans – 120mm FDB Silent FanPCI-E Connectors – 4 x 8(6+2) Pin PCI-EModular – Fully ModularEfficiency – 80Plus GoldEnergy-Efficient – 80 PLUS GOLD CertifiedOver Voltage Protection – OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIPInput Voltage – 100 240 VInput Frequency Range – 60 50HzInput Current – 12-6AOutput – 1000WWarranty – 10 YearsNote** – **Prices, Specifications & Features are subject to change without notice.
Specification – MODEL NAME – TORX FAN 12CMWEIGHT (CARD) – 169gDIMENSIONS – 120mm x 120mm x 25.6mmMODULAR – Yes (fully modular)BEARING TYPE – Hydro-Dynamic BearingFAN BEARING – Fluid Dynamic BearingRATED SPEED – 500 1800 ±15% RPMPOWER WATT – 1250WINPUT VOLTAGE RANGE – 100-240V~POWER EXCURSION – 2500W (*up to 200% of the PSUs rated power for 100?s)AIR FLOW – 19.79 71.27 CFMSTATIC AIR PRESSURE – 0.16 2.09 mm-H20INPUT FREQUENCY – 50-60HzCONNECTOR – 4-Pin PWM/DCEFFICIENCY – 80 PLUS Gold (up to 90%)LIFE EXPECTANCY – MTTF 150,000 Hours (25?)ATX (24 PIN) – 1PCI-E 5.1 (16 PIN) – 1 (600W)FAN SIZE – 135 mmEPS (8 PIN) – 2DIMENSION – 150 x 150 x 86 mmPCI-E (6+2 PIN) – 4PFC TYPE – Active PFCSATA (15 PIN) – 12PROTECTION – OCP / OVP / OPP / OTP / SCP / UVPMOLEX (4 PIN) – 4FDD (4 PIN) – 1Warranty – 7 YearsNote* – Price, feature and specifications are subject to change without notice.
Model No – SF-850F14MPWattage – 850W80+ Efficiency – 20%: 90%; 50%:92%; 100%:89%; (115V Internal Platinum)Input Power Design Guide – V2.92AC Input | Frequency – 100-240Vac | 60 / 50 HzFan Size – 140mm Dual Ball Bearing Silent FanDimension – 165mm(L) x 150mm(W)x86mm(H)Protection – OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIPSafety – cTUVs / TUV / CB / CE / FCC / RCM / BSMI / RoHS / KCC / EACTemperature – Passed 50 C Hot TestingCable Specs – 20+4 Pin – One Cable (600m)4+4 Pin CPU – Two Cables (700m)PCI-E 6+2 Pin – Two Cables (700m)SLI (2 x PCI 6 + 2 Pin) – Two Cables (700m + 150mm)4SATA – One Cable (550 + 100 + 100 + 100mm)3SATA – Two Cable (550 + 100 + 100mm)4Molex – One Cable (550 + 100 + 100 + 100mm)Molex Adapter – One Cable (100mm)Warranty – 5 YearsNote** – **Prices, Specifications & Features are subject to change without notice
Model – NE1000G M White ATX 3.0Type – ATX 12V 3.0Dimension – 140(L)*150(W)*86(H)Modular – Full-ModularInput Voltage – 100V-240VInput Current – 12A-6AInput Frequency Range – 60Hz-50HzPFC – Active PFCPower Good Signal – 100-150msProtection – OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLOOutput Capacity – 1000WOperation Temperature – 0~40°CRegulatory – cTUVus / TUV / CB / RCM / CE /FCC / BIS / BSMI / KC / UKCA / ICESFan – 120mm FDB Silent FanCertifications – 80 Plus GoldConnector – 1 x 24(20+4)pin MB1 x 16(12+4)pin PCIE 5.0 12VHPWR2 x 8(4+4)pin CPU4 x 8(6+2) Pin PCI-E12 x SATA4 x MolexNet Weight – 1.64 KgsGross Weight – 4.66 KgsWarranty – 10 YearsNote – *** Features, Price, Specifications are subject to change without notice.
Model – ECO400Categories – Power SupplyWattage – 400 WattWarranty – 2 YearsNote – *** Image use for reference only*** Features, Price, Specifications are subject to change without notice.
