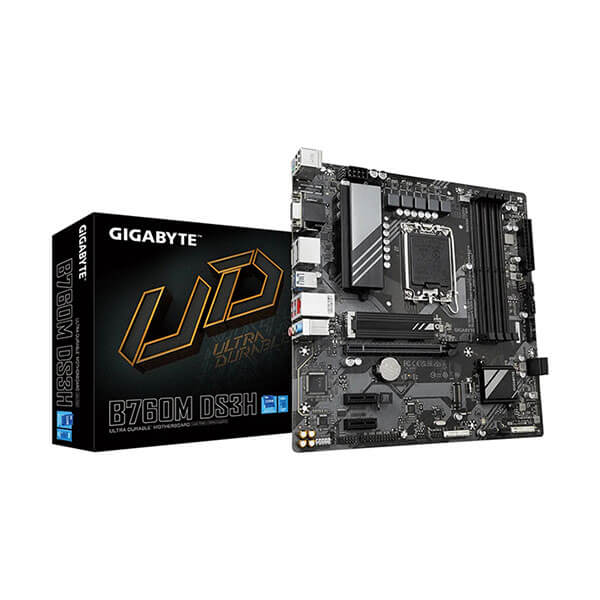

The Gigabyte B760M DS3H DDR5 is a micro-ATX platform delivering modern LGA1700 support with strong DDR5 memory headroom and dual PCIe 4.0 M.2 storage. Its hybrid 6+2+1 VRM, M.2 Thermal Guard and EZ-Latch PCIe slot prioritize durability and thermal stability in compact builds. With Realtek 2.5GbE networking, generous USB (including rear 10Gb/s Type-C) and Smart Fan 6 thermal controls, this board is well-suited for small-form-factor workstations and gaming rigs that need high-bandwidth storage and reliable networking. CTA: Purchase from A2Z Computech for verified units, BIOS tuning, thermal profiling and local warranty registration to ensure peak performance out of the box.
| Model | Gigabyte B760M DS3H DDR5 |
|---|---|
| CPU Support / Socket | 14th / 13th / 12th Gen Intel (LGA1700) |
| Chipset | Intel B760 |
| Memory Support | DDR5 (support up to DDR5 7600(O.C.) … 4800/4000) — XMP/Extreme Memory Profile support |
| Max RAM | 192 GB (4× DDR5 DIMMs, 48 GB per DIMM) |
| Memory Type | DDR5 |
| Expansion Slots (PCIe) | CPU: 1× PCIe4.0 x16 ; Chipset: 2× PCIe3.0 x1 |
| Storage Support | 2× M.2 (CPU + chipset; PCIe4.0 x4 support), 4× SATA 6Gb/s |
| Graphics Output Options | 1× D-Sub, 1× HDMI, 2× DisplayPort |
| LAN | Realtek 2.5GbE LAN |
| Audio Codec | Realtek Audio CODEC — HDA (2/4/5.1/7.1) + S/PDIF |
| USB Support (rear + front / totals) | Rear: USB-C 10Gb/s + 3× USB3.2 Gen1 + 2× USB2.0 (back) ; Internal/headers: 2× USB3.2 Gen1 internal + multiple USB2.0 headers (as listed). |
| Internal I/O Headers (key) | 24-pin ATX, 8-pin CPU, 3 system fan headers, 2× M.2 sockets, TPM header, Q-Flash Plus, Clear CMOS jumper, EZ-Latch PCIe |
| Form Factor | mATX (24.4 × 24.4 cm) |
| Warranty | 3 Years |
